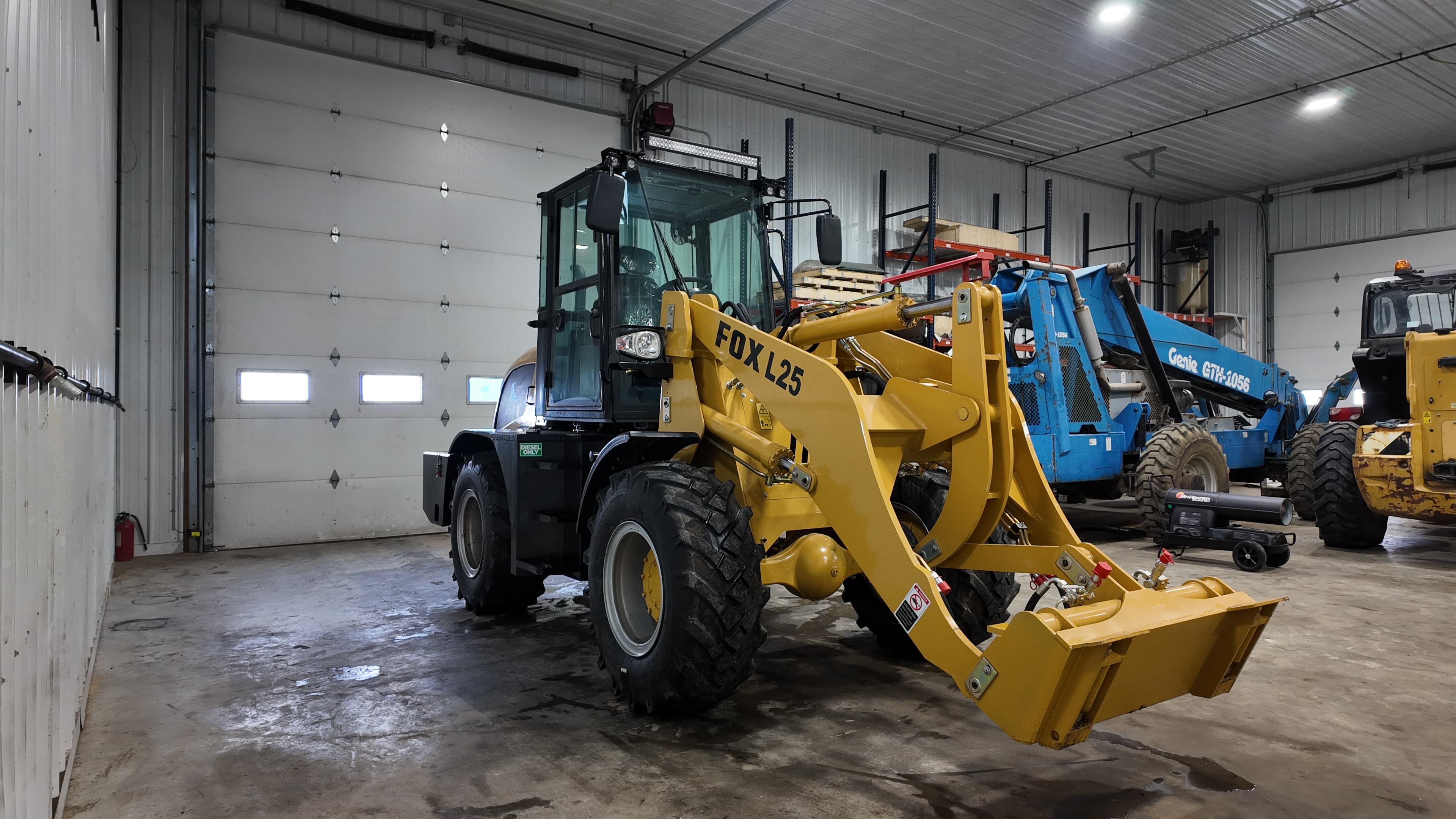

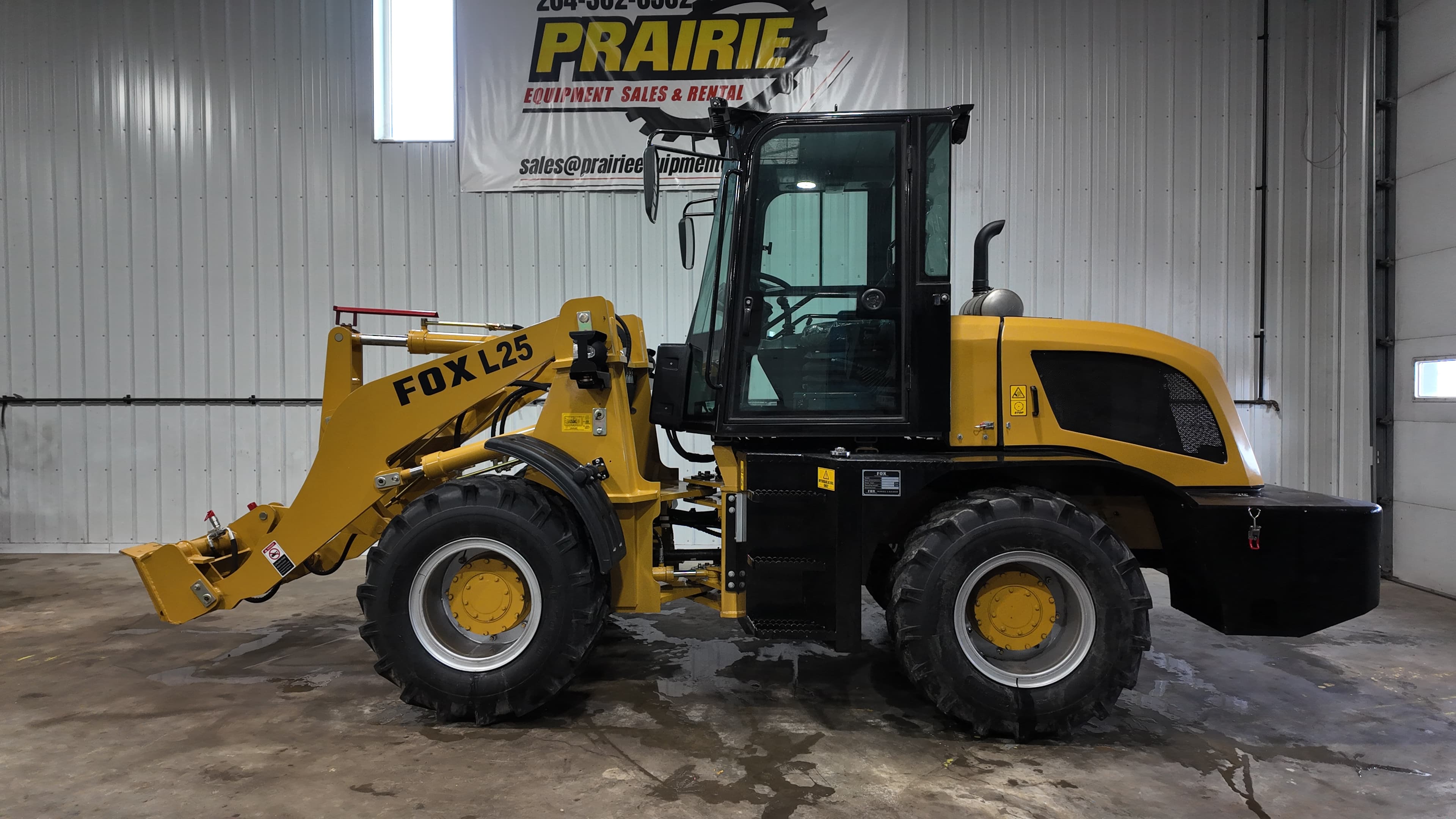

2.5 Ton Loader
FOX L25
$49,500
The FOX L25 is a full-size 2.5-ton wheel loader with Cummins diesel power, 4-wheel drive, and articulated design for superior traction. Built for heavy construction, large-scale agriculture, and commercial operations where you need serious lifting power without the dealer price tag.
Full Specifications
- Engine
- Cummins QSF 2.8L (74 HP) Diesel
- Bucket Capacity
- 1.5 yd³
- Operating Weight
- 12,346 lbs
- Rated Load Capacity
- 2.5 Tons (5,511 lbs)
- Max Dumping Height
- 12 ft
- Hydraulic Flow Rate
- 32 gal/min
- Dimensions
- 21.3 ft × 6.5 ft × 9.5 ft
See the FOX L25 in Action
Powered By

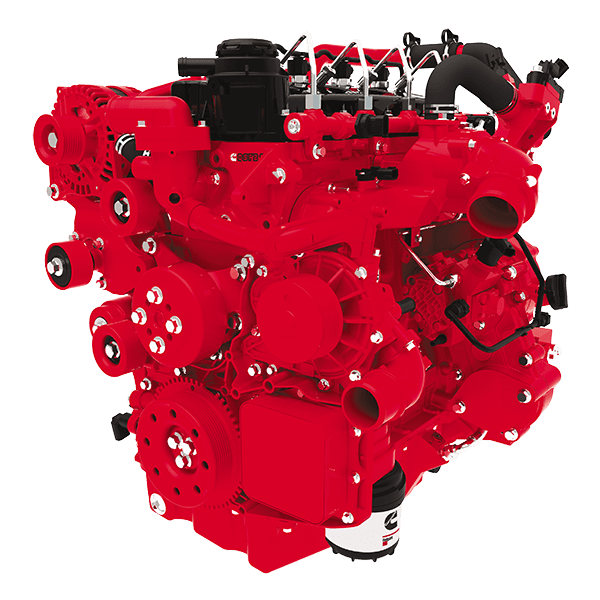

Cummins QSF 2.8L Tier 4 Final
Displacement
2.8L (169.4 CID)
Horsepower
74 HP (55 kW) @ 2,500 RPM
Peak Torque
221 lb-ft (300 N·m) @ 1,600 RPM
Configuration
Inline 4-Cylinder Diesel
Fuel System
High Pressure Common Rail (HPCR)
Aspiration
Wastegated Turbocharger with Charge Air Cooling
Emissions
EPA Tier 4 Final / EU Stage IV
Service Interval
500 Hours
Delivers 74 HP performance comparable to larger 3.6L engines in a compact 2.2L-sized package
Peak torque of 221 lb-ft available at just 1,600 RPM for strong low-end pulling power
Near-zero emissions using cooled EGR and Diesel Oxidation Catalyst — no DPF filter required
Full-authority electronic controls for precise fuel management and lower operating costs
Built to Cummins global manufacturing standards — legendary reliability and durability
