1.6 Ton Loader
FOX L16
$38,995
The FOX L16 is a mid-range wheel loader with a powerful Cummins 74 HP diesel engine delivering exceptional performance with low fuel consumption. At 1.6-ton capacity, it handles construction, agriculture, and material handling with ease. A strong all-rounder for growing operations.
Full Specifications
- Engine
- Cummins QSF 2.8L (74 HP) Diesel
- Bucket Capacity
- 1.3 yd³
- Operating Weight
- 9,260 lbs
- Rated Load Capacity
- 1.6 Tons (3,527 lbs)
- Max Dumping Height
- 11.5 ft
- Hydraulic Flow Rate
- 23.8 gal/min
- Dimensions
- 19.5 ft × 6 ft × 9.2 ft
See the FOX L16 in Action

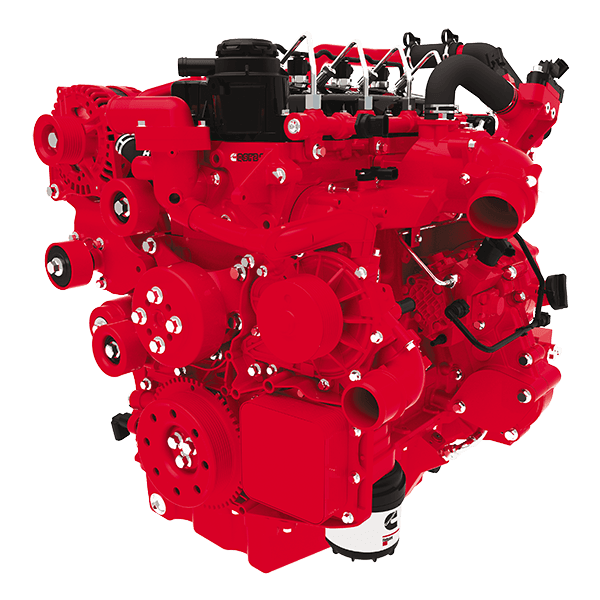

Powered By
Cummins QSF 2.8L Tier 4 Final
Displacement
2.8L (169.4 CID)
Horsepower
74 HP (55 kW) @ 2,500 RPM
Peak Torque
221 lb-ft (300 N·m) @ 1,600 RPM
Configuration
Inline 4-Cylinder Diesel
Fuel System
High Pressure Common Rail (HPCR)
Aspiration
Wastegated Turbocharger with Charge Air Cooling
Emissions
EPA Tier 4 Final / EU Stage IV
Service Interval
500 Hours
Delivers 74 HP performance comparable to larger 3.6L engines in a compact 2.2L-sized package
Peak torque of 221 lb-ft available at just 1,600 RPM for strong low-end pulling power
Near-zero emissions using cooled EGR and Diesel Oxidation Catalyst — no DPF filter required
Full-authority electronic controls for precise fuel management and lower operating costs
Built to Cummins global manufacturing standards — legendary reliability and durability
