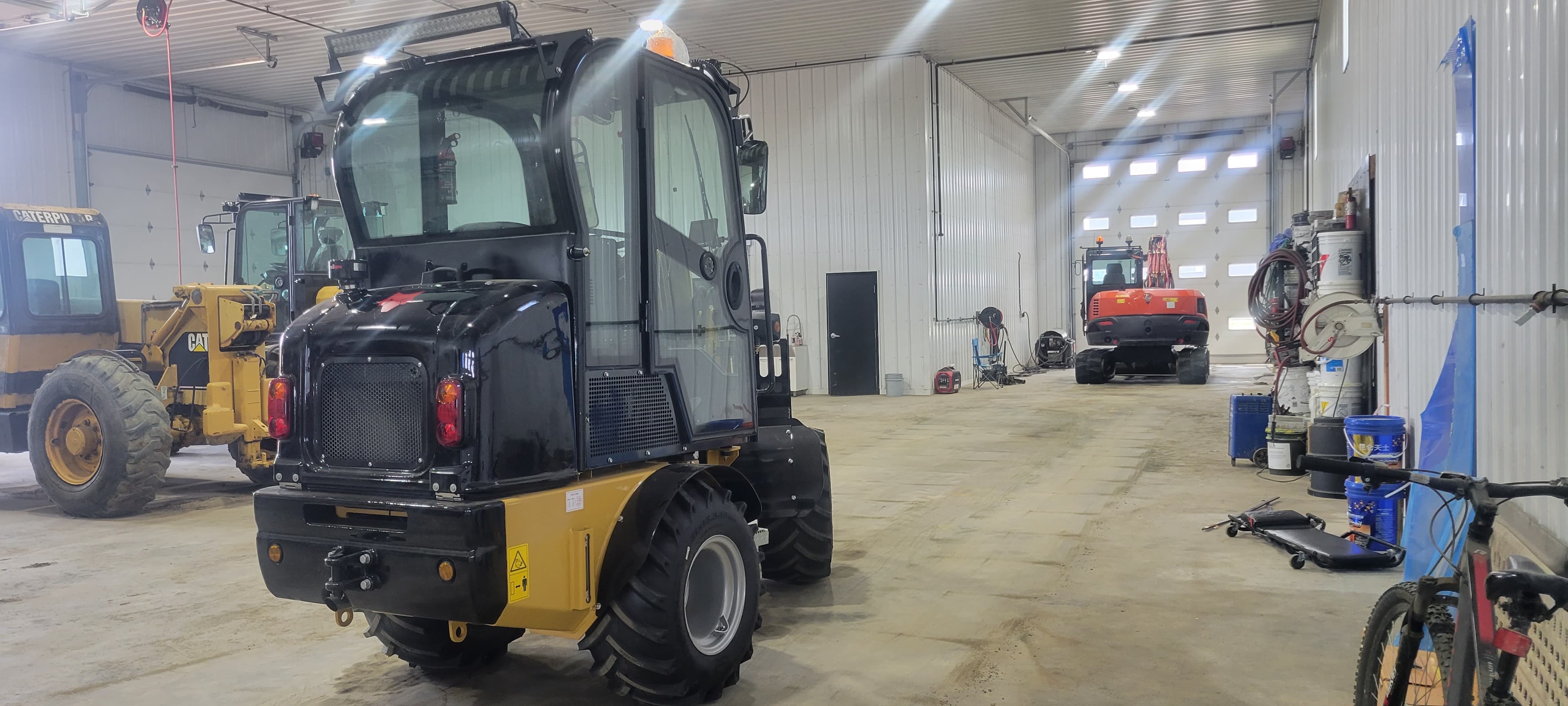

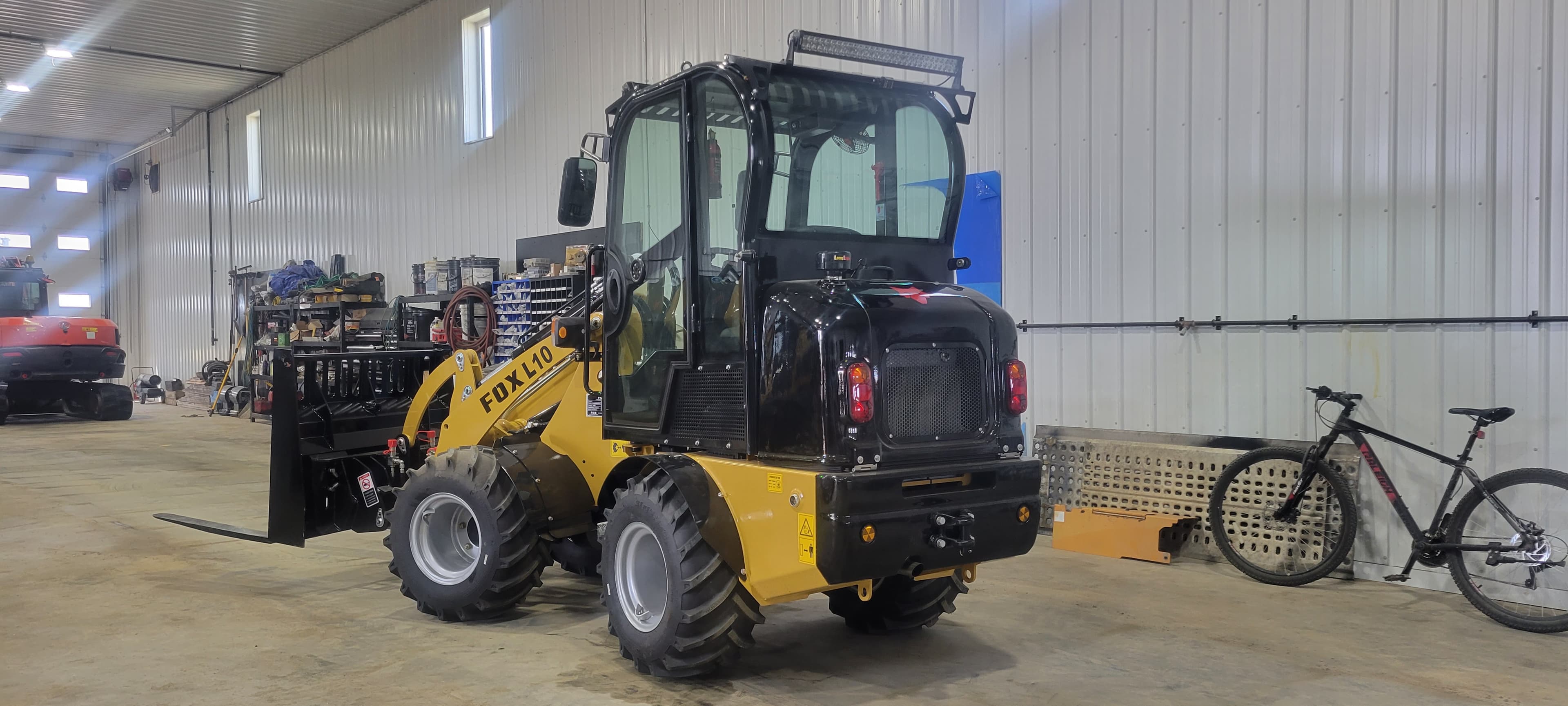

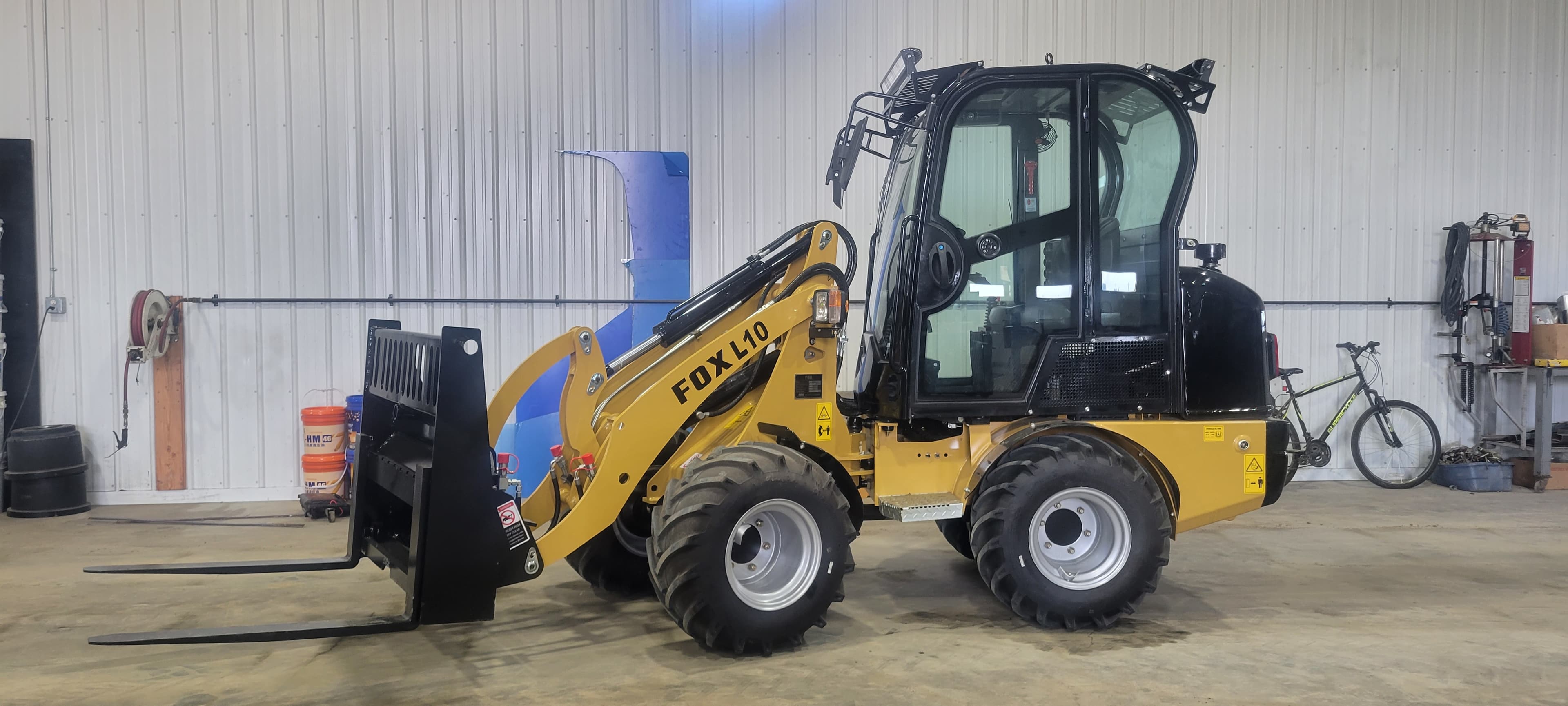

1 Ton Loader
FOX L10
$34,995
The FOX L10 is a compact 1-ton wheel loader powered by the renowned Kubota L3L diesel engine. Engineered for reliability in tight spaces — ideal for landscaping, small construction jobs, farm work, and snow removal. Its small footprint and strong lift make it the perfect entry-level loader.
Full Specifications
- Engine
- 25 HP Kubota L3L Diesel
- Bucket Capacity
- 0.8 yd³
- Operating Weight
- 5,071 lbs
- Rated Load Capacity
- 1 Ton (2,204 lbs)
- Max Dumping Height
- 8.5 ft
- Hydraulic Flow Rate
- 16 gal/min
- Dimensions
- 13.3 ft × 4.8 ft × 7.4 ft

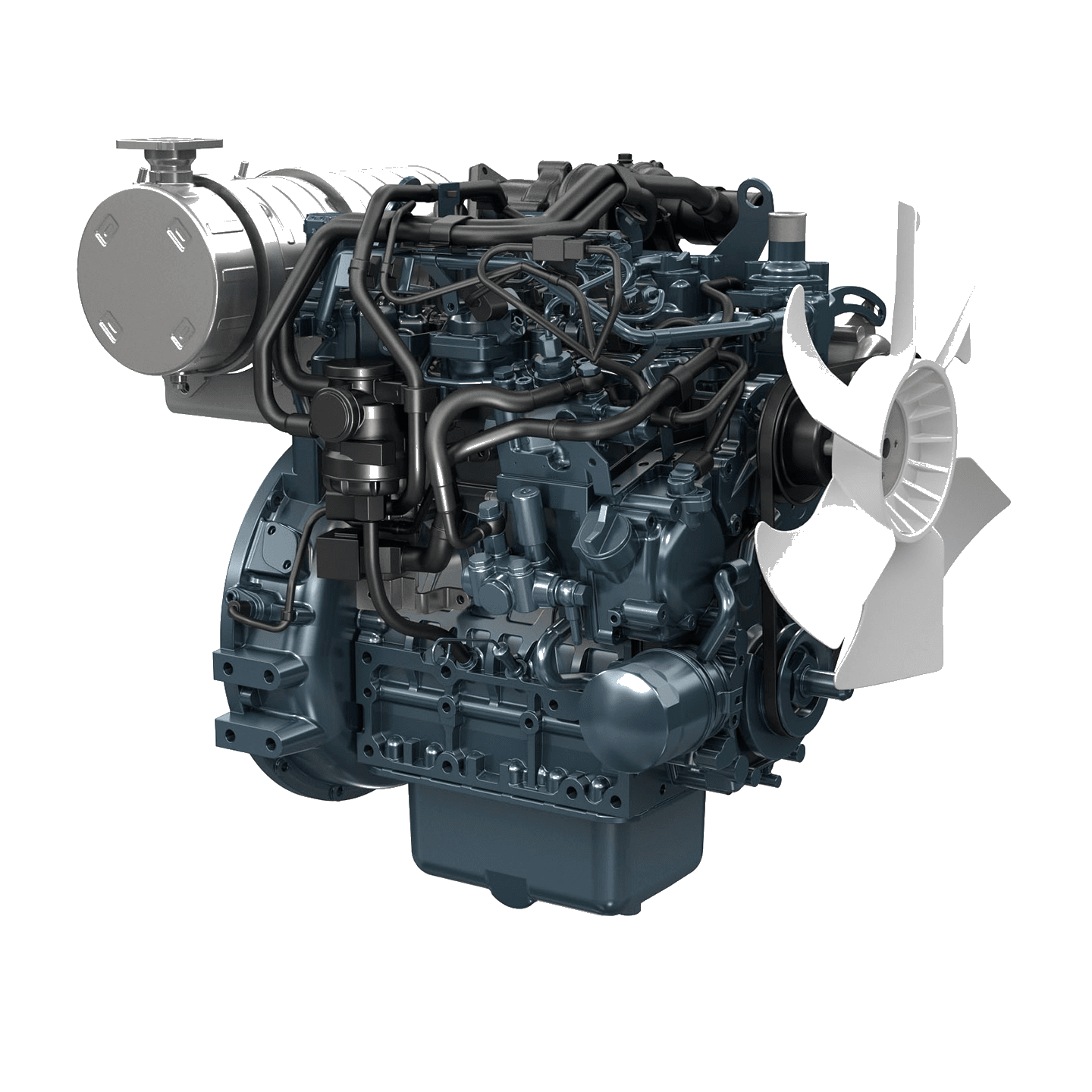

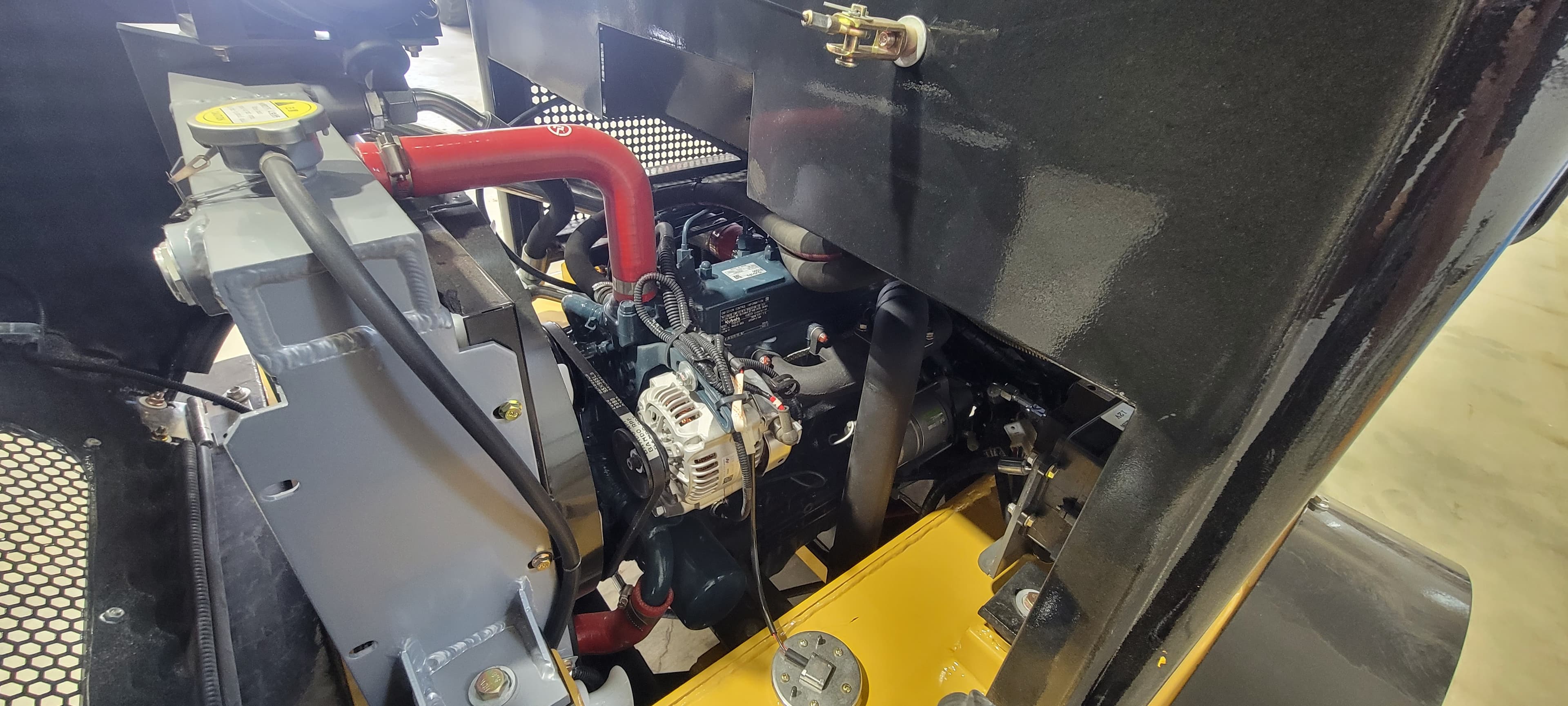

Powered By
Kubota D1803-CR-TI-E4
Displacement
1.8L (111.4 CID)
Horsepower
25 HP @ 1,800 RPM
Peak Torque
Continuous-rated for steady compact loader operation
Configuration
Vertical 3-Cylinder, Water-Cooled 4-Cycle Diesel
Fuel System
Common Rail Direct Injection
Aspiration
Turbocharged + Turbo After Cooler
Emissions
EPA/CARB Tier 4
Service Interval
500 Hours
Kubota's proven 3-cylinder diesel — renowned worldwide for reliability and easy maintenance
Common rail fuel system delivers precise injection for clean, efficient combustion
Turbocharged with after cooler for consistent power output in demanding conditions
Diesel Oxidation Catalyst (DOC) aftertreatment — no DPF filter to clean or replace
Compact and lightweight at 469 lbs — purpose-built for small wheel loader applications
